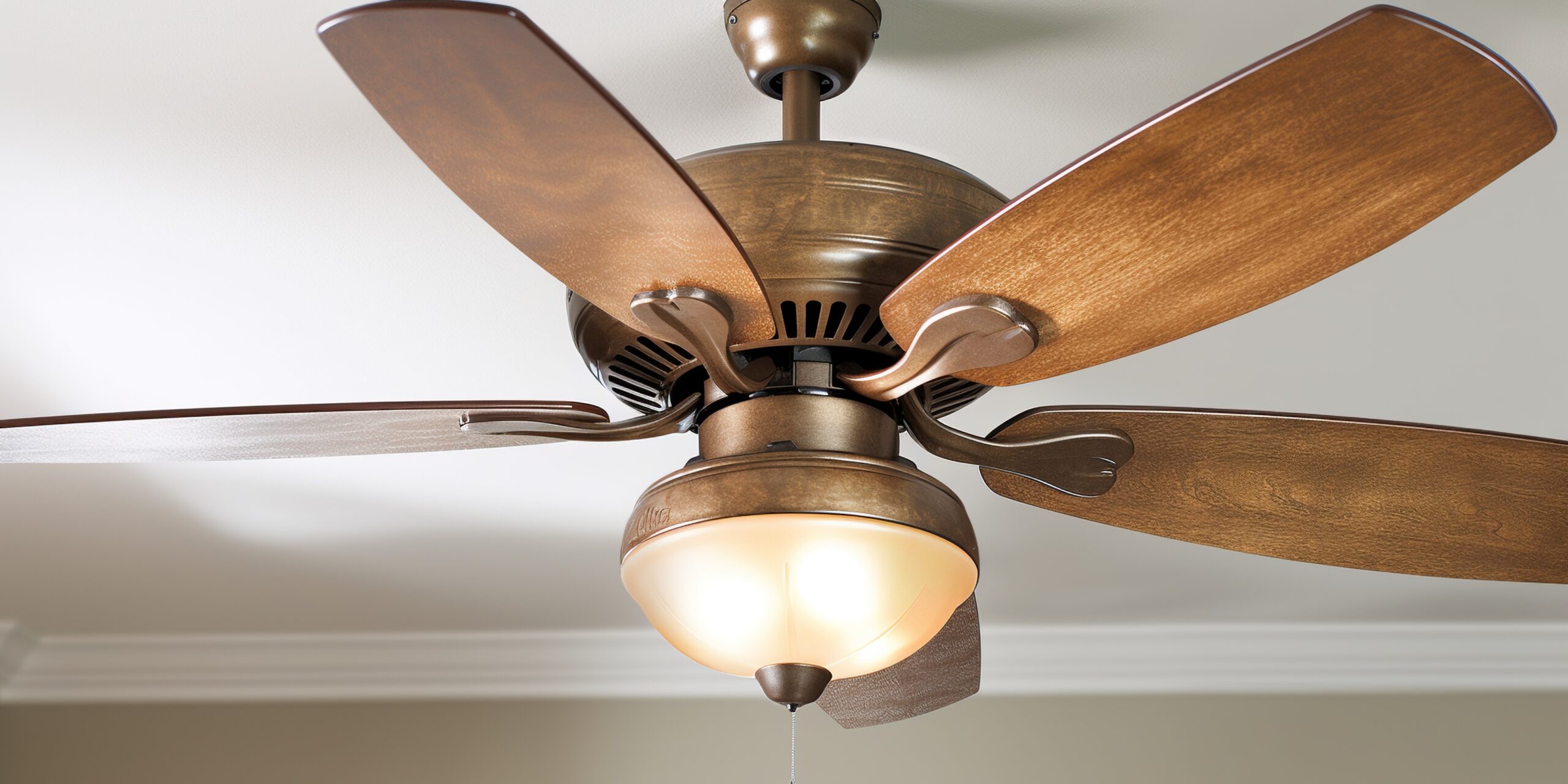

Homeowners in Sykesville, Maryland, and the surrounding areas know that a ceiling fan is more than just a breeze-maker. It’s a stylish, functional centerpiece that adds comfort and value to any room. But let’s be honest, wiring a ceiling fan can be a bit tricky. That’s where many eager DIYers get into trouble. Whether you’re a weekend warrior or a seasoned home improver, avoiding common ceiling fan wiring mistakes is crucial. Don’t worry! We’re here to guide you through the process with a little humor and a lot of expert advice. Let’s dive into ceiling fan wiring, common mistakes, and how to avoid them.
Understanding the Basics of Ceiling Fan Wiring
Before you dig deeper into the wiring process, it’s important to understand the basics. Ceiling fans aren’t just pretty spinning blades, they’re electrical devices that need proper installation to function safely. While the process might seem straightforward, the wiring involved can be more complex than it appears at first glance. If you’re not familiar with the wiring in your home, or you’re not sure which wire goes where it’s easy to make a mistake.
Let’s break down the essential components.
Types of Ceiling Fan Wiring Configurations
Ceiling fans typically come with two wiring options: single-switch and dual-switch configurations.
- Single-Switch Wiring: This configuration controls both the fan and the light from one switch. It’s the most common setup but can be a bit limiting if you want separate controls for the fan and light.
- Dual-Switch Wiring: This option allows you to control the fan and light independently. It requires more wiring but offers greater flexibility.
Understanding the Wires in Your Ceiling Fan
In most standard ceiling fan installations, you’ll encounter four wires:
- Black (Hot Wire): Controls the fan’s power.
- Blue (Hot Wire): Controls the light kit’s power.
- White (Neutral Wire): Completes the circuit by returning the current to the electrical panel.
- Green or Bare Copper (Ground Wire): Provides a path to safely dissipate excess electricity into the earth.
Common Ceiling Fan Wiring Mistakes
Even the handiest homeowner can stumble when it comes to wiring a ceiling fan. Here are the most common pitfalls and how to steer clear of them.
Not turning Off the Power
This might seem like a no-brainer, but you’d be surprised how many people forget this critical step.
How to Avoid It: Always double-check that the power is off before you start. Use a voltage tester to ensure there’s no current running through the wires. It’s better to be overly cautious than to risk an injury.
Mixing Up the Wires
With so many wires involved, it’s easy to mix them up. Connecting the wrong wires can result in the fan not working, or worse, a short circuit.
How to Avoid It: Label the wires before disconnecting the old fan. Take a picture of the existing wiring for reference. This small step can save you a lot of headaches later.
Ignoring the Ground Wire
The ground wire might seem like an unnecessary extra, but it plays a vital role in your home’s electrical safety. Skipping this connection can put you at risk of electric shock.
How to Avoid It: Always connect the ground wire. If your ceiling box doesn’t have a ground wire, you may need to install a grounding system or consult with a professional.
Using the Wrong Size Junction Box
Ceiling fans are heavier than light fixtures, and they need proper support. Installing a fan in a junction box designed for a light fixture can lead to a dangerous situation.
How to Avoid It: Make sure your ceiling box is rated for fan support. If it’s not, replace it with one that can handle the weight and movement of a ceiling fan.
Overloading the Circuit
Adding a ceiling fan to an already overloaded circuit can cause frequent breaker trips, or worse, a fire.
How to Avoid It: Check your circuit load before adding a ceiling fan. If you’re not sure, consult an electrician to ensure your system can handle the additional load.
The Right Tools for Ceiling Fan Wiring
We are about to do you a huge favor, so you’re not pulling out your hair. Having the right tools on hand can make a world of difference. Here’s a list of must-have tools to ensure your ceiling fan installation goes smoothly.
Essential Tools for the Ceiling Fan Wiring Job
- Voltage Tester: To confirm the power is off before you start working.
- Wire Strippers: For safely stripping the insulation off the wires.
- Screwdrivers: Both flathead and Phillips are usually needed.
- Needle-Nose Pliers: For twisting wires together securely.
- Electrician’s Tape: To insulate and protect wire connections.
Having these tools at your disposal will make the process easier and safer.
Choosing the Right Ceiling Fan for Your Space
Before you get to wiring, you need to choose the right ceiling fan for your room. The size and type of fan you select can impact both the installation process and the overall effectiveness of the fan.
Consider the Room Size: A fan that’s too small won’t move enough air, and one that’s too large can overwhelm the space. Small rooms that are 100 square feet or less, can use a 30-48-inch wide fan. Standard rooms that are up to 175 square feet, use a ceiling fan that is 36-48 wide. In large rooms, you can use a fan that is 56 inches or bigger.
Fan Features: Modern ceiling fans come with a variety of features like remote controls, light kits, and even smart home integration. Will you need light in your space? Consider purchasing one with a light kit.
Step-by-Step Guide to Wiring Your Ceiling Fan
Now that you’re familiar with the basics and the tools needed, let’s walk through the wiring process step by step.
Step 1: Turn Off the Power
We’ve mentioned this before, but it’s worth repeating. Turn off the power at the circuit breaker to ensure your safety. Use your voltage tester to confirm the power is off before you proceed. You don’t want any surprise zaps!
Step 2: Remove the Old Fixture
Carefully remove the existing light fixture, if there is one. Always keep track of the screws and the mounting bracket, you may need them later. Also, take note of how the old fixture was wired; this will guide you in connecting the new fan. Taking a photo of the old fixture is helpful.
Step 3: Install the Ceiling Fan Mounting Bracket
The mounting bracket attaches to the junction box and provides support for the fan. Make sure it’s securely fastened and leveled. If your junction box isn’t fan-rated, replace it before proceeding.
Step 4: Connect the Wires
Now comes the crucial part—connecting the wires. Match the black wire from the fan to the black wire from the ceiling (fan power), the blue wire to the red wire (light power, if applicable), and the white wire to the white wire (neutral). Finally, connect the green or bare copper wire to the ground wire.
Step 5: Secure the Fan and Attach the Blades
Once the wiring is complete, secure the fan motor to the mounting bracket. Attach the fan blades according to the manufacturer’s instructions. Ensure everything is tight and balanced to prevent wobbling.
Step 6: Test Your Work
Turn the power back on at the breaker and test the fan. Make sure both the fan and light (if applicable) operate correctly. If something isn’t working, double-check your connections.
Troubleshooting Common Ceiling Fan Wiring Issues
Even with careful installation, you might encounter some issues. Here’s what we recommend to troubleshoot the most common problems.
The Fan Won’t Turn On
If the fan doesn’t work, start by checking the breaker and the wall switch. Ensure the wires are connected properly and securely. A loose connection could be the culprit.
The Fan Wobbles
A wobbly fan is not only seriously annoying but can also be unsafe. Check that the blades are evenly spaced and that all screws are tight. You might also need to use a balancing kit to even things out.
The Light Doesn’t Work
If the fan works but the light doesn’t, double-check the blue wire connection. Make sure the light bulbs are properly installed and not burned out.
Humming or Noise
A humming noise usually indicates a loose part or an issue with the wiring. Check that all connections are tight and that the fan is mounted securely. Sometimes, adding a fan-rated wall switch can reduce noise.
Safety Tips for Ceiling Fan Wiring
Safety should always be your top priority when working with electricity. Here are some additional tips we recommend to keep in mind.
Don’t Rush the Job
Take your time to do the job right. Not to scare you, rushing can lead to mistakes that could cause electrical issues or even a fire.
Use the Right Equipment
Only use tools and materials rated for the job. A standard junction box, for example, won’t cut it for a ceiling fan. Make sure all components are fan-rated.
When in Doubt, Call CK Electric
If you’re not confident in your wiring skills, call our office immediately. Electricity is not something to take lightly, and our licensed electricians can ensure your fan is installed safely.
When to Call CK Electric for Your Ceiling Fan Wiring
Don’t feel alone, there are times when even the most dedicated DIYer should call in reinforcements. If you’re dealing with old wiring, a complicated setup, or simply feel unsure, CK Electric is here to help.
Older Homes with Outdated Wiring
If your home in Sykesville, Maryland, is older, it might have outdated wiring that isn’t up to modern standards. This can make ceiling fan installation more complex and dangerous.
Why Call CK Electric: We specialize in working with older homes. We can update your wiring to safely accommodate a new ceiling fan, ensuring everything is safe and up to code.
Complicated Installations
Some ceiling fan installations are more complicated than others. If your fan includes smart features or requires additional wiring for dual switches, it’s best to leave it to the professionals.
Why Call CK Electric: We’ve been there, done that. Our licensed electricians have the expertise to handle even the most complex installations, ensuring everything works flawlessly.
Peace of Mind
Peace of mind is always worth the cost of hiring a professional. If you’re unsure about any part of the installation, calling our office can save you from potential headaches and hazards.
Not to toot our own horn, but we’re a licensed and insured electrical contractor with years of experience in ceiling fan installations. We’ll get the job done right, so you don’t have to worry.
Work with CK Electric for All Your Electrical Service Needs
Wiring a ceiling fan might seem like a straightforward task, but as we’ve seen, there are plenty of potential pitfalls. From mixing up wires to skipping essential safety steps, it’s easy to make mistakes that can have serious consequences. By following the tips in this guide, you can avoid common ceiling fan wiring mistakes and enjoy a cool, comfortable home.
At CK Electric, we’re not just any electrical contractor. We’re your neighbors in Central Maryland, committed to providing top-notch service to homeowners in Sykesville and beyond. We understand the unique challenges of wiring in older homes, and we bring a level of expertise and care to every job. Whether you’re installing a new ceiling fan or upgrading your home’s electrical system, you can count on us for safe, reliable, and professional service. Contact us today!
We provide electrical services for the following areas: Sykesville, Westminster, Eldersburg, Ellicott City, Frederick, and all of Central Maryland. Call us at 443-920-3078 or email us at info@ckelectricllc.com. We are happy to serve you!
FAQs
Can I install a ceiling fan by myself, or should I hire an electrician? Yes, you can install a ceiling fan yourself, but only if you’re comfortable with electrical work and have the right tools. If you’re unsure, it’s safer to hire an electrician.
What do I do if my ceiling fan is wobbling after installation? Check that the blades are evenly spaced and the screws are tight. You might need to use a balancing kit. If the problem persists, consult a professional.
Is it necessary to connect the ground wire when installing a ceiling fan? Absolutely. The ground wire is essential for safety. It helps prevent electric shock and ensures the system operates safely.
Can I use a regular junction box for a ceiling fan? No, ceiling fans require a fan-rated junction box that can support the fan’s weight and movement. Using a regular box is dangerous and not up to code.
What should I do if my circuit breaker trips after installing a ceiling fan? This could indicate that the circuit is overloaded. You may need to reconfigure your circuit or add a new one. It’s best to consult with an electrician.
How do I know if my home’s wiring is compatible with a new ceiling fan? If you’re unsure about your home’s wiring, consult an electrician. They can assess the wiring and make any necessary updates to ensure safe installation.
